Understanding MCC Buckets

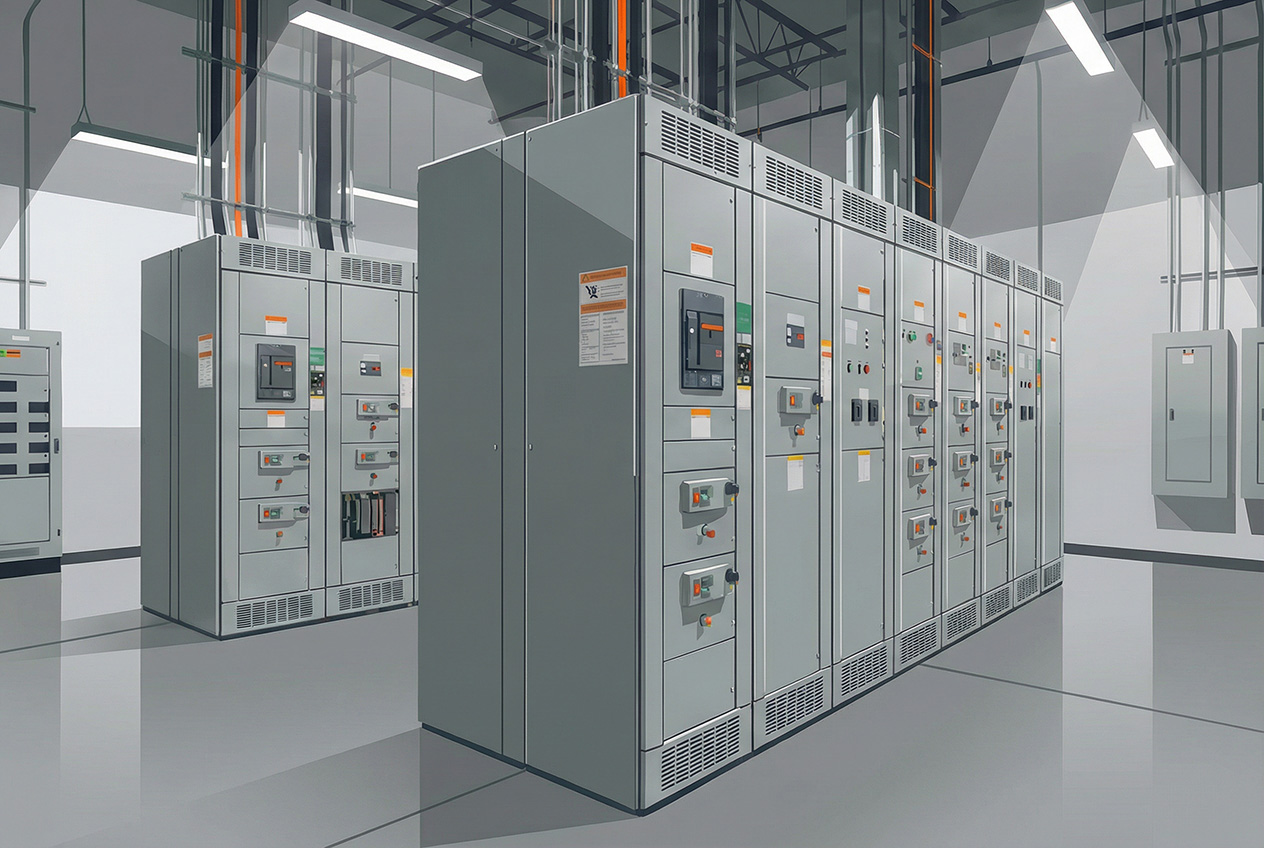

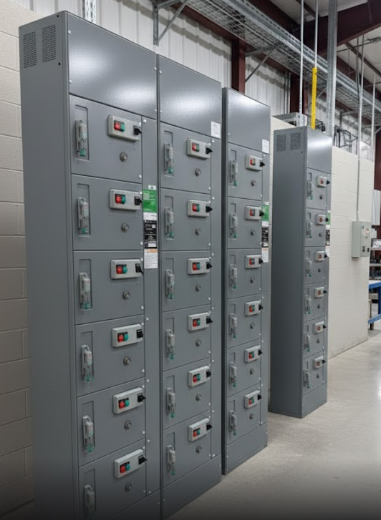

Motor control center (MCC) buckets are removable, plug-in units that house the electrical components required to control individual motors in an industrial facility. Each bucket slides into a vertical section of the MCC lineup, connecting to the main bus through a set of stab assemblies that carry three-phase power at 480V or 600V. A single MCC lineup may contain dozens of buckets, each configured for a specific motor circuit with its own disconnect, overload relay, and control wiring.

Buckets are categorized by function. Feeder buckets distribute power from the main bus to downstream panels or equipment, typically rated from 100A to 1200A with either breaker or fused disconnects. Starter buckets control motors directly and come in several configurations: Full Voltage Non-Reversing (FVNR) for simple on/off motor control, Full Voltage Reversing (FVR) for applications requiring directional changes, VFD buckets housing variable frequency drives for speed control, and soft start buckets that reduce inrush current during motor startup.

Why MCC Buckets Fail

MCC buckets operate in demanding environments, and several failure modes are common across all manufacturers. Stab contact degradation is the most frequent issue. The spring-loaded stab assemblies that connect the bucket to the bus bars lose tension over repeated insertion cycles, creating high-resistance connections that generate heat, pitting, and eventually arc damage. Arc flash events can destroy internal components and damage the bucket enclosure itself, often requiring a complete retrofit or replacement.

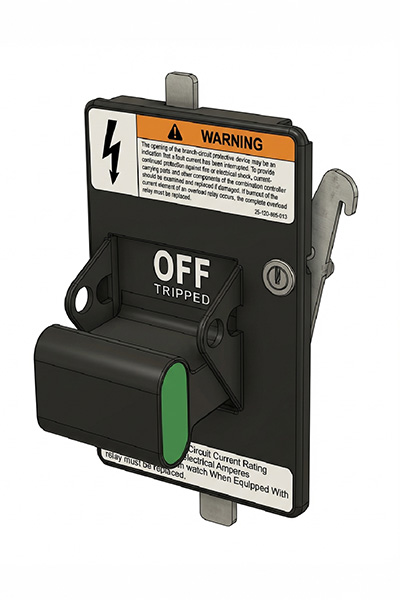

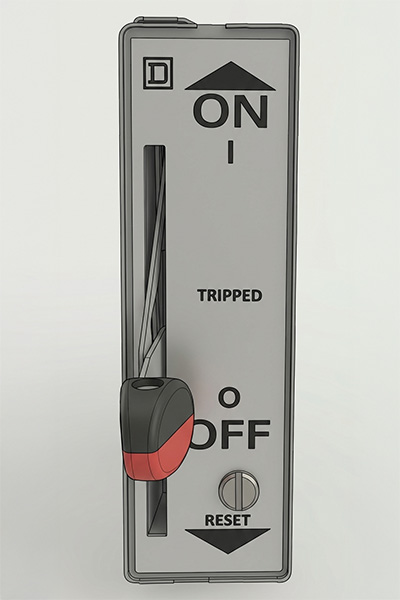

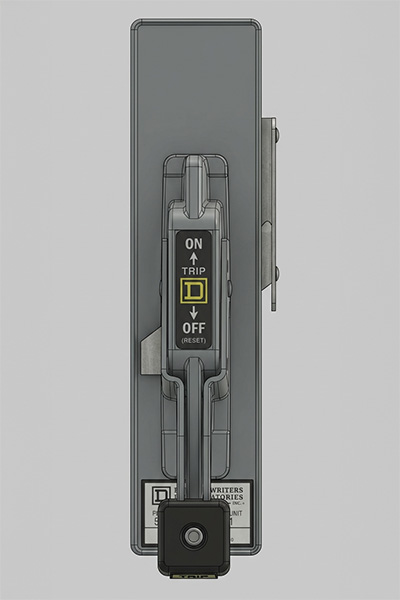

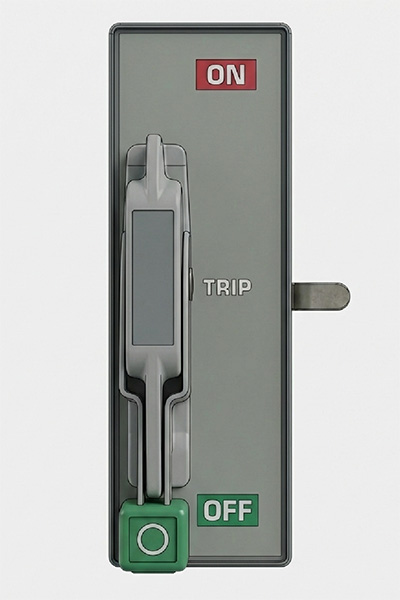

Mechanical wear on door handles, latching mechanisms, and interlock assemblies is another common cause of bucket replacement. Corrosion from humid or chemically aggressive environments attacks bus connections and internal wiring. Per NEC Article 430 and NFPA 70, motor branch circuit protection must be maintained to code. When bucket components degrade below safe operating thresholds, the bucket must be replaced or rebuilt to maintain compliance with these standards and protect personnel from electrical hazards.

Industries We Serve

MCC Depot supplies replacement buckets and field services to facilities across every major industrial sector. Water and wastewater treatment plants rely on MCC buckets for pump control, blower motor circuits, and chemical feed systems where continuous operation is critical to public health compliance. Manufacturing facilities use MCCs to power assembly line drives, CNC machines, hydraulic presses, and process control systems where unplanned downtime directly impacts production schedules.

Oil and gas operations depend on MCC buckets for drilling rig motor control, pipeline pump stations, and refinery process equipment rated for hazardous locations. Mining operations run crushers, conveyors, ball mills, and processing equipment through MCCs that must withstand extreme vibration and dust. Commercial buildings use MCC buckets for HVAC chiller and fan control, elevator drive systems, and fire pump controllers where NEC Article 695 requires dedicated, reliable motor circuits.

VFD Motor Upgrades: Why Feeder Buckets Are in High Demand

Energy efficiency regulations are reshaping how industrial facilities control motors. Many states and municipalities now require that any motor 50 HP or larger must be replaced with a variable frequency drive (VFD) when the motor is swapped out. These requirements stem from ASHRAE 90.1 energy standards and Department of Energy motor efficiency rules that are being adopted into local building and energy codes across the country.

For MCC owners, this creates an immediate need: how do you power that new VFD from your existing motor control center? The most common approach today is to install the VFD at or near the motor, then run a 200A-400A feeder bucket from the MCC to supply power. This remote VFD approach keeps drive heat out of your MCC lineup, shortens motor cable runs, and lets you service the VFD without an MCC shutdown.

We also build VFD-in-bucket configurations for smaller drives where centralized control makes sense. Either way, we specialize in getting these buckets built fast. When your facility has a motor replacement that triggers a VFD requirement, we can have your feeder bucket built and shipped in 3-5 days. Learn more about VFD retrofit options.

Our Build Process

Every bucket from MCC Depot is built to order in our UL 508 certified facility in Wyoming. The process starts with configuration: you specify the MCC model (Square D Model 5, Siemens Tiastar, Allen-Bradley 2100, etc.), bucket height, amperage rating, and disconnect type. Our engineers verify compatibility with your existing lineup before production begins.

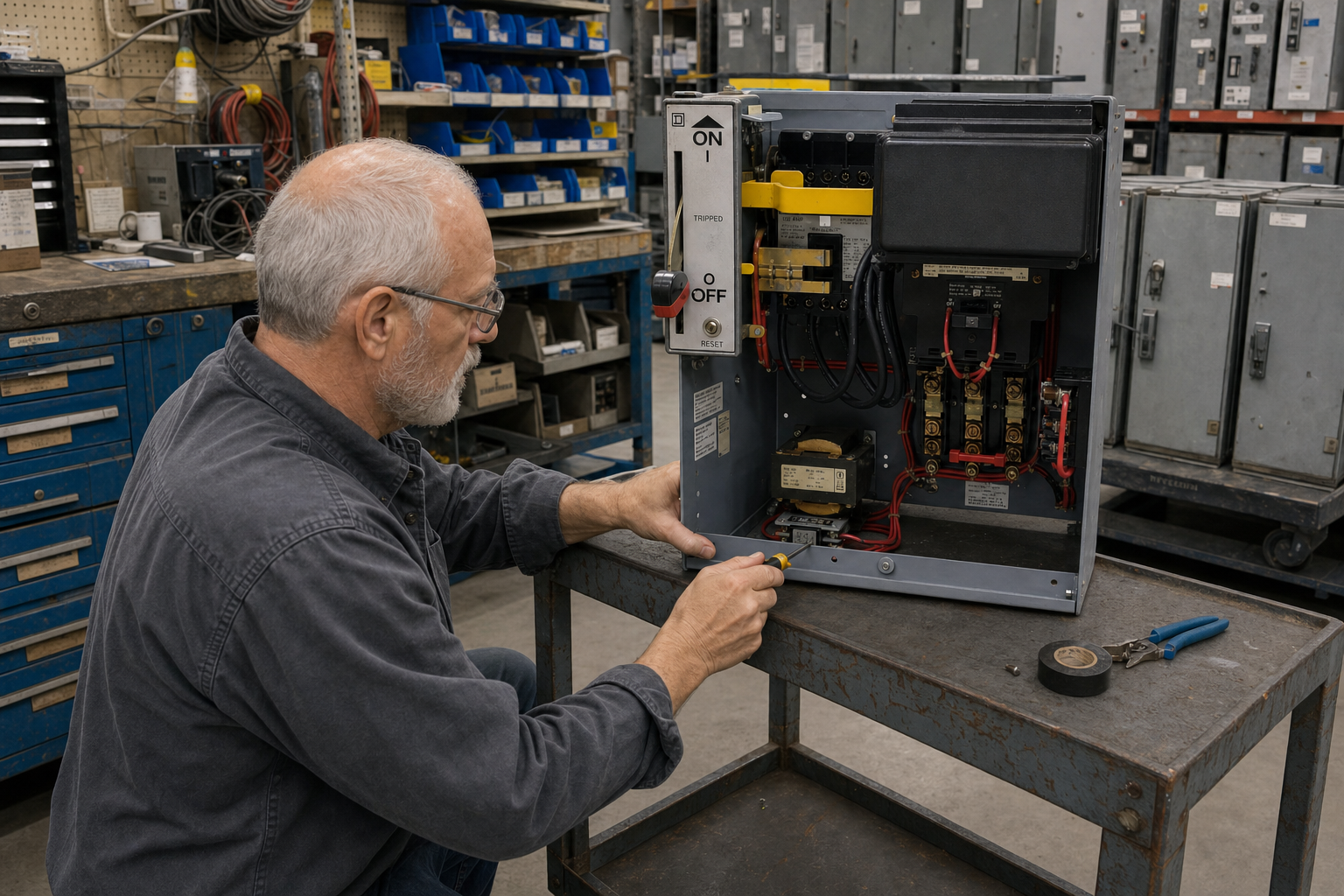

We source new, OEM-equivalent components including breakers, fused switches, stab assemblies, bus connections, and door hardware. Each bucket is assembled by technicians with 15+ years of hands-on MCC experience. Before shipping, every unit goes through a three-stage quality process: hi-pot dielectric testing to verify insulation integrity, functional testing of the disconnect mechanism and interlock, and point-to-point wiring verification against the configuration specification.

Standard orders ship with free ground freight anywhere in the continental US. For emergency situations, we offer rush builds completed in 1-2 days with overnight shipping available. Learn more about our custom build capabilities or configure your bucket online.
